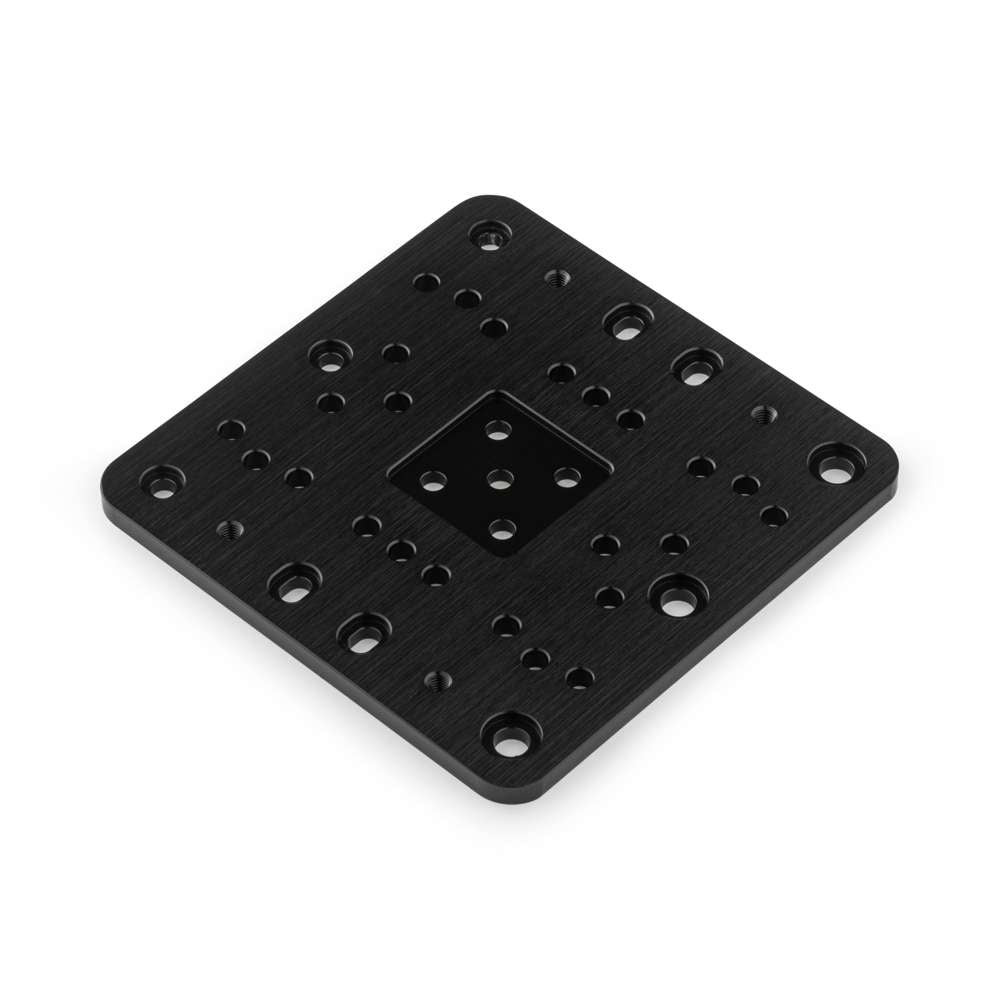

Extra Large C-Beam Gantry Plate (125x125mm) (77.5×77.5mm) is a compact and durable platform for building smooth, precise linear motion systems using C-Beam Aluminium Extrusions (40x80mm). Made from high-strength aluminium and finished with a black anodised coating, this plate accepts V-Slot Wheels and rides along the external slots of the C-Beam profile. Holes on one side are designed to accept eccentric spacers, enabling preloading of the wheels for tight, wobble-free tracking. With additional hardware, it can be adapted for lead screw-driven motion. Multiple mounting holes allow for flexible attachment of tools, motors, brackets, or custom components. Key Features V-Slot Wheel Compatible: Designed to accept V-Slot Wheels for smooth, accurate linear motion. Eccentric Spacer Support: Holes on one side accept eccentric spacers for adjustable wheel preloading. Compatibility: Runs on the outside of 40x80mm (C-Beam) extrusion. Mounting Flexibility: Features a range of mounting holes to support motors, brackets, and custom components. Application C-Beam Gantry Plates are ideal for creating moving platforms in CNC machines, 3D printers, linear actuators, laser cutters, and other linear motion assemblies. Using lead screws this plate provides a stable, adjustable, and precise base. It is a flexible and reliable choice for a wide range of mechanical projects.
