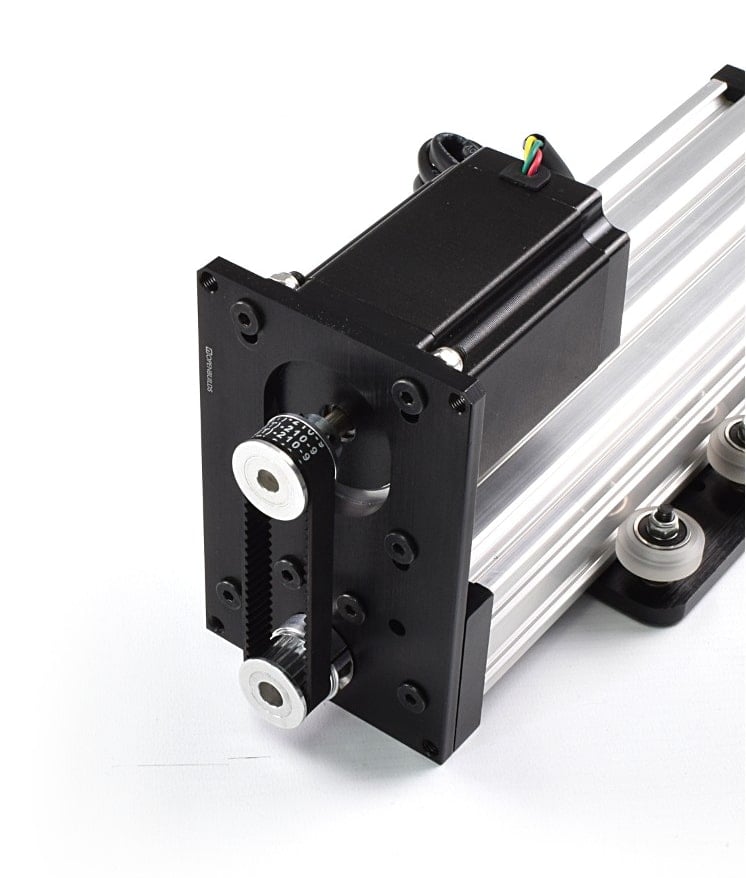

The high torque belt motor stand off kit makes use of the high torque series GT3 timing belt and pulley with the standoff plate, to create a reducing system which provides a 1:1 reduction ratio on the motor. This allows you to flip the motor 180 degrees and tuck it behind the extrusion on your C-Beam linear actuator. This kit bolts directly through the C-Beam end mount in to the C-Beam linear rail using 25mm M5 Low profile bolts . It has an adjustable NEMA23 hole pattern to tension the GT3 Timing Belt. what you will be getting QTY Part 1 C-Beam Belt Standoff Plate 1 GT3 Pulley High Torque 20 Tooth – 1/4″ Bore 1 GT3 Pulley High Torque 20 Tooth – 8mm Bore 1 GT3 High Torque Closed Timing Belt 4 20mm M5 Low Profile Bolt (Motor Mounting) 4 25mm M5 Low Profile Bolt (Reducer Mounting) 4 M5 Nyloc Nut (Motor Mounting)
