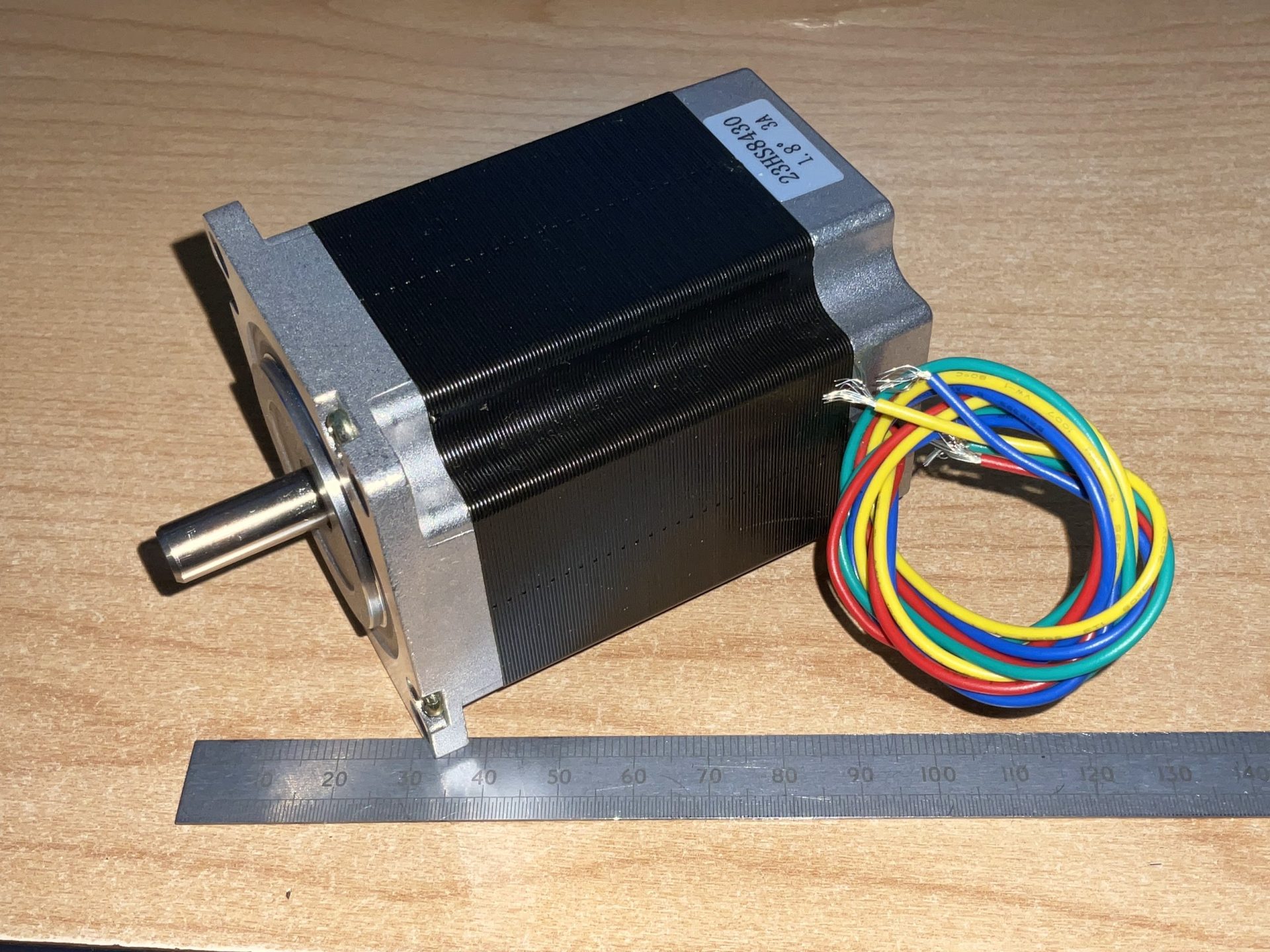

NEMA23 Stepper Motor 255 oz-in 1.8°/step

Rated 4.89 out of 5 based on 70 customer ratings

$ 40.99

+Shipping: $9.90 per carton — Free when you order 2+ cartons!

Categories: , Ice Creams Brand: Black Devil

Description This is a hybrid stepping motor with 2-phases and 4-wire bipolar windings. General Specification: Model Number: 23HS8430 Shaft Diameter:8mm with 2 flat faces Step Angle: 1.8° (200 step/rev) Motor Length: 76 mm Rated Current: 3.0 Amps per phase Phase Resistance: 1.0 ohms Phase Inductance: 3.5 mH Holding Torque: 255 oz-in / 180 N.cm Detent Torque: 5 N.cm max Rotor Inertia:440 g.cm2 Weight: 1050g Wiring: Red: A Green: A- Yellow: B Blue: B- Step angle accuracy: ±5%(full step, no load) Resistance accuracy: ±10% Inductance accuracy: ±20% Temperature rise: 80°C Max(rated current,2 phase on) Ambient temperature: -20° ~ 50°C Insulation resistance:100MΩ Min,500VDC Insulation Strength: 500VAC for one minute
