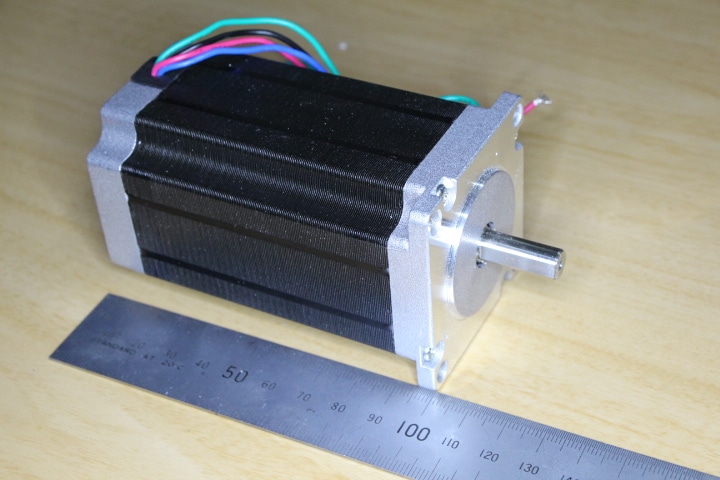

NEMA23 Stepper Motor 354 oz-in 1.8°/step

Meher Baba's Lectures to the Meher Ashram Boys in 1927-28

Meher Baba

Hardcover 775 pages.
NOW ON SALE:
NOW ON SALE:
Please choose option:

$ 49.48

Description This is our biggest gruntiest motor (for now) This is a hybrid stepping motor with 2-phases and 4-wire bipolar windings. General Specification: Shaft Diameter: 8mm with flat face Step Angle: 1.8° (200 step/rev) Motor Length: 100 mm Rated Current: 4.2 Amps per phase Phase Resistance: 0.8 ohms Phase Inductance: 3.0 mH Holding Torque: 354 oz-in / 250 N.cm / 25.5 kg.cm Detent Torque: 10 N.cm max Rotor Inertia:680 g.cm2 Weight: 1.4kg   Wiring: Black: A Green:A- Red:B Blue:B-     Step angle accuracy: ±5%(full step,no load) Resistance accuracy: ±10% Inductance accuracy: ±20% Temperature rise: 80°C Max(rated current,2 phase on) Ambient temperature: -20° ~ 50°C Insulation resistance:100MΩ Min,500VDC Insultion Strength: 500VAC for one minute
